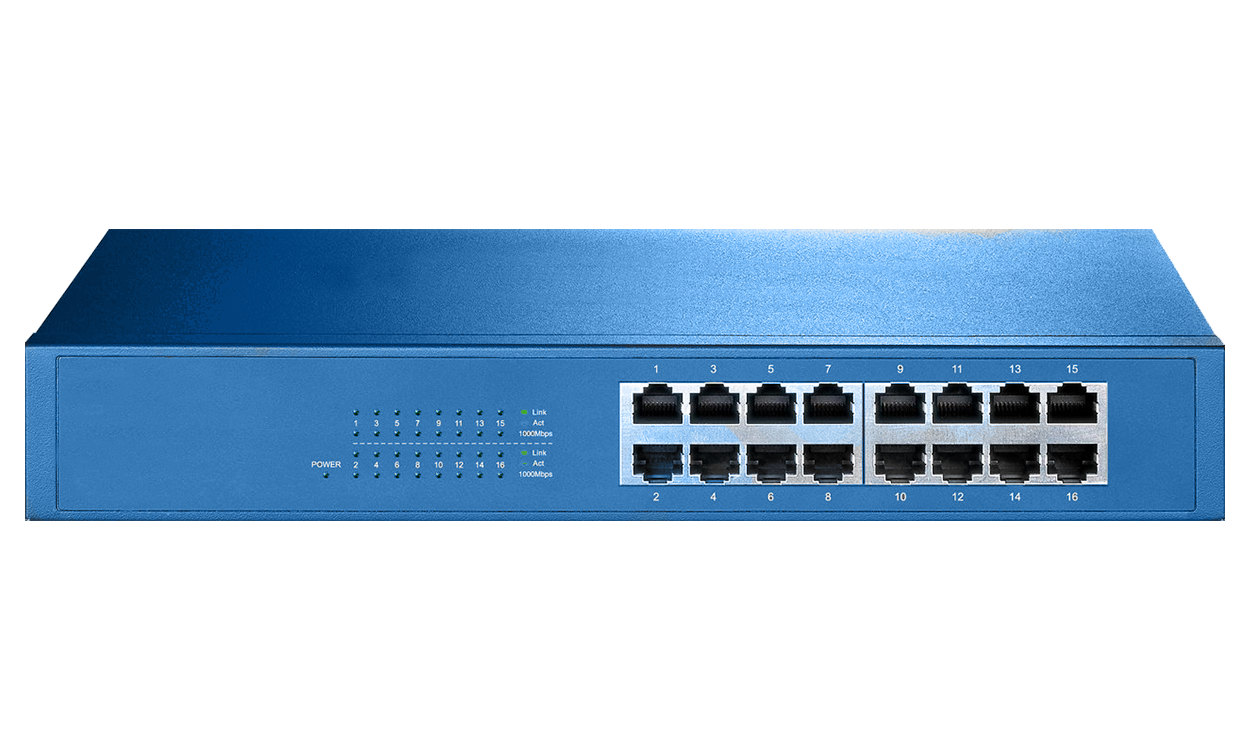

NS-16

16-Port Gigabit Unmanaged Switch

Quickly and easily expand the wired connections on your vessel at Gigabit speeds with ease.

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Where to Buy

Gigabit Ethernet
Transfer data 10x faster than Fast Ethernet, ensuring high-speed and lower latency connectivity for wired devices on the vessel.

Energy Efficient
Green Ethernet technology saves the power up to 84% over traditional wired networking device connections

Easy Setup
Installation is fast and easy. No CD or software installation is required. Simply mount, plug in, and power on. Connections are hot-swappable.

Package Contents

NS-16 Switch Device
Power Cord
Rackmount Kits
Rubber Feet
Quick Start Guide
Warranty Information

Compatibility

All modern, wired, Ethernet-based networks

We back our devices — and our customers — with the best limited warranty in the industry.

The NS-16 is backed by a two-year limited warranty and includes lifetime technical support by our dedicated and knowledgeable team. Rest assured that we have you covered by the best, for the best.

Warranty Information

Technical Specifications


		Hardware Features

		Standards and Protocols
		IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

		Interface
		16 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

		Media
		10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

		Cooling
		Fanless

		Power Consumption
		Maximum: 9.26W (220V/50Hz)

		Power Supply
		100-240VAC, 50/60Hz

		LED Indication
		System Power, Link, Speed and activity indicators per port built into each RJ-45 port

		Dimensions
		11.6*7.1*1.7 in. (294*180*44 mm)

		Environment
		Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing

		Performance

		Switching Capacity
		32Gbps

		Packet Forwarding Rate
		23.8Mpps

		MAC Address Table
		8K

		Jumbo Frame
		10KB

		Software Features

		Advanced Features
		Green Technology, saving power up to 84%

802.3X Flow Control

802.1P/DSCP QoS

IGMP Snooping

		Transfer Method
		Store and Forward

Disclaimer: All products, product speficiations and data are subject to change without notice to improve reliability, function, design or otherwise.
