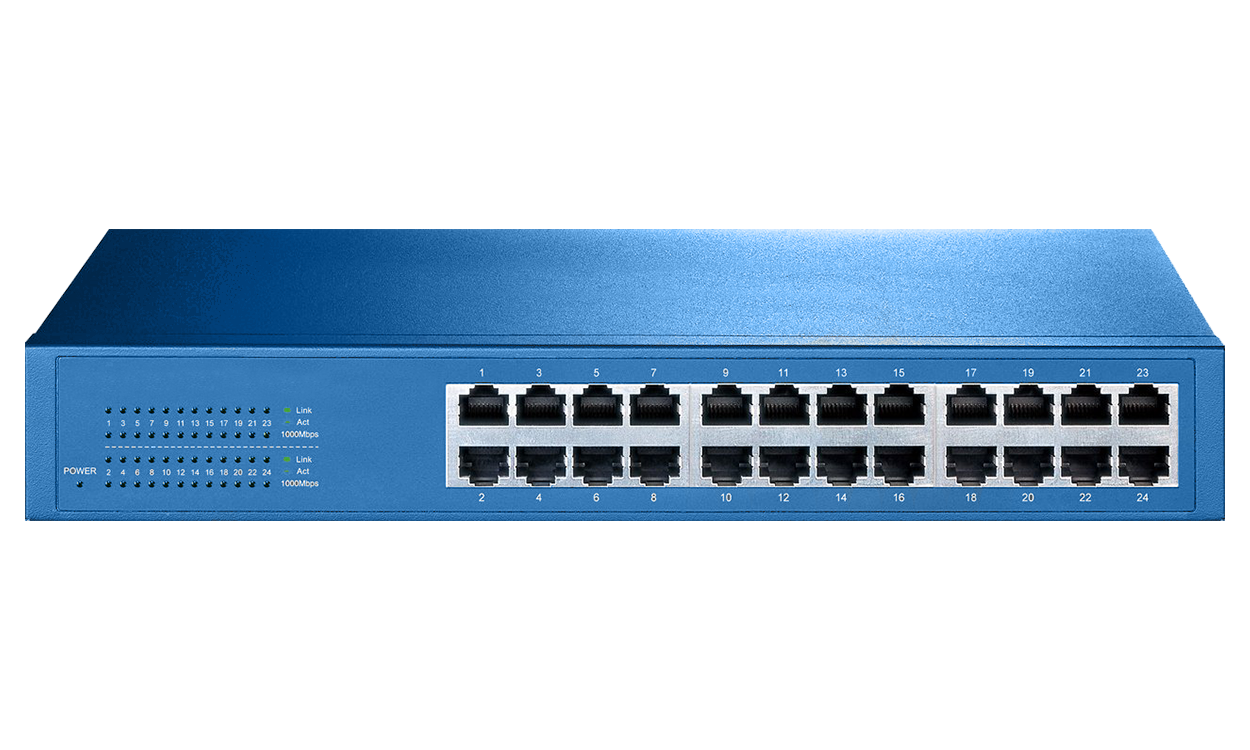

24-Port Gigabit Unmanaged Switch
Quickly and easily expand the wired connections on your vessel at Gigabit speeds with ease.
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
- NS-24 Switch Device
- Power Cord
- Rackmount Kits
- Rubber Feet
- Quick Start Guide
- Warranty Information
- All modern, wired, Ethernet-based networks
We back our devices — and our customers — with the best limited warranty in the industry.
The NS-24 is backed by a two-year limited warranty and includes lifetime technical support by our dedicated and knowledgeable team. Rest assured that we have you covered by the best, for the best.
|Standards and Protocols||IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p|
|Interface||24 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports|
|Media||10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
|Power Consumption||Maximum: 13.1W (220V/50Hz)|
|Power Supply||100-240VAC, 50/60Hz|
|LED Indication||System Power, Link, Speed and activity indicators per port built into each RJ-45 port|
|Dimensions||11.6*7.1*1.7 in. (294*180*44 mm)|
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
|Packet Forwarding Rate||35.7Mpps|
|MAC Address Table||8K|
|Advanced Features||Green Technology, saving power up to 84%
802.3X Flow Control
|Transfer Method||Store and Forward|
